Art 312 Globe Valve API 6D

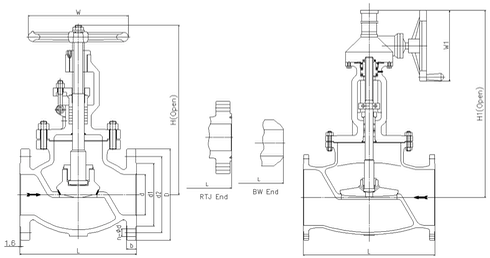

Art. 312 Valvola a globo con monogramma API6D e CE sul corpo, OS&Y, asta saliente, trim in acciaio inox, test API 598, fire safe API 6FA, scartamento ANSI B16.10, flange ANSI B16.5 o BW ANSI B16.25. Disponibile con corpo in WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, CN7, LC1, LC, LC, LCB, LCC, Monel, 20# Alloys, 4A, 5A, Aluminium bronze C95800, C95500, Carbon steel ASTM A105, F304 - F304L, F316, F316L, LF1, LF2, LF3, LF9, F5, F5, F1, F22.


Art. 312 Globe valve with nonogram API 6D and CE on the body,  OS&Y, rising stem, stainless steel stem and trim, test API 598, fire safe API 6FA. Face to face ANSI B16.10, flanges ANSI B16.5 or BW ANSI B16.25. Available with body in WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, CN7, LC1, LC, LC, LCB, LCC, Monel, 20# Alloys, 4A, 5A, Aluminium bronze C95800, C95500, Carbon steel ASTM A105, F304 - F304L, F316, F316L, LF1, LF2, LF3, LF9, F5, F5, F1, F22.

loghini


Manufacturing Standards

API 6D, 600, 598, 591, 602, 6FA, 594, 6A

ISO 14313, 10497, 5752, 7259, 5996, 7005, 5210, 5211, 520

ANSI-ASME B16.34, B16.10, B16.20, B16.25, B16.5, B16.47, B16.42, B1.1, B16.1

AWWA C500, C501, C508, C509

AWS 5.9, AWS 5.1, AWS 5.4, AWS 5.5, AWS 5.13, AWS 5.14, AWS 5.15

MSS SP45, SP6, SP9, SP25, SP41, SP55, SP82, SP85, SP70, SP71, SP101, SP102, SP44

ASTM A105, A126, A182, A193, A194, A216, A217, A320, A350, A351, A352, A395, A488, A536

BS 1414, 1873, 1868, 5146, 1560, 5152, 5153, 5159, 5352, 6755

NACE MR0175

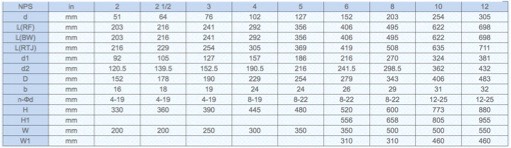

Art.312s150 Globe valve Class 150 , API 6D OS&Y, rising stem, test API 598

Tab 1

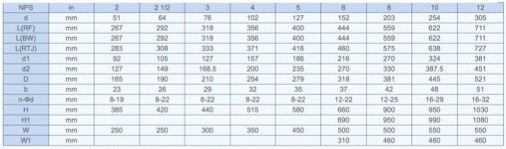

Art. 312s300 Globe valve Class 300, API 6D OS&Y, rising stem, test API 598,. Face to face ANSI B16.10, flanges ANSI B16.5 or BW ANSI B16.25

tab 2

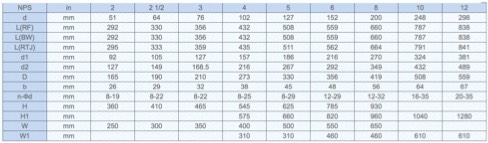

Art. 312s600 Globe valve Class 600, API 6D OS&Y, rising stem, test API 598,. Face to face ANSI B16.10, flanges ANSI B16.5 or BW ANSI B16.25

tab 3

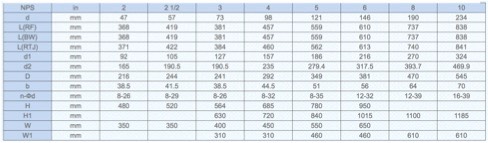

Art. 312s900 Globe valve Class 600, API 6D OS&Y, rising stem, test API 598,. Face to face ANSI B16.10, flanges ANSI B16.5 or BW ANSI B16.25

tab 4

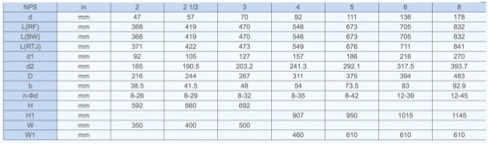

Art. 312s1500 Globe valve Class 1500, API 6D OS&Y, rising stem, test API 598,. Face to face ANSI B16.10, flanges ANSI B16.5 or BW ANSI B16.25

tab 5
